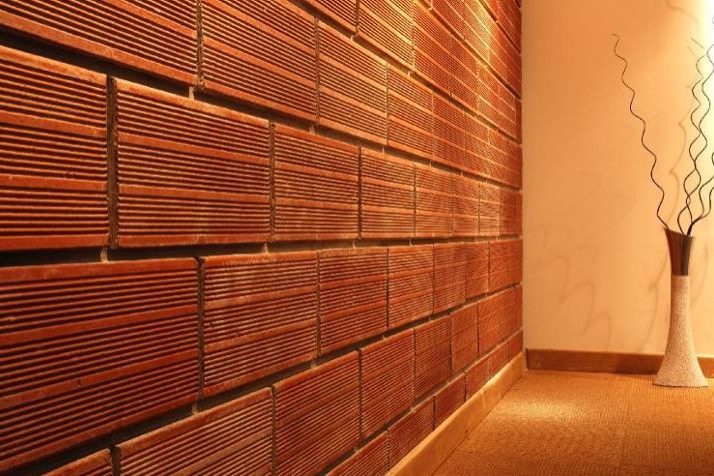

WB India showroom

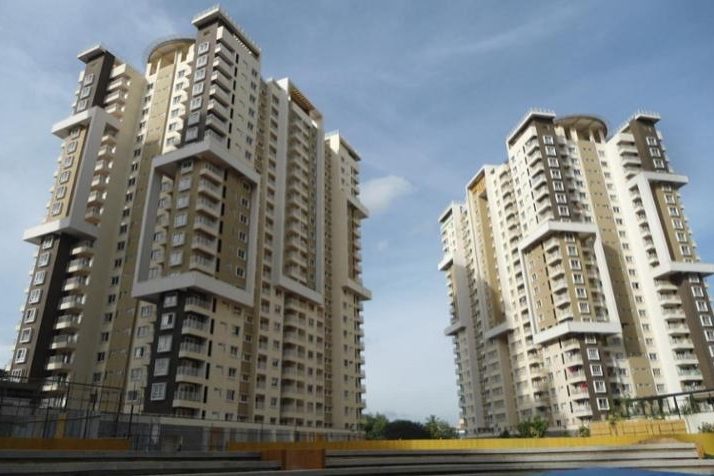

Sattva Greenage

Wall Solutions: Porotherm Smart Bricks

The Hollow clay blocks by Porotherm Smart Bricks designed to provide better efficiency, durability, ease of use and a host of other benefits that aid in cost- effective wall construction and comes in two types: Non-Load Bearing Clay Hollow Blocks and Load Bearing Clay Hollow Blocks.

Types & Application

Under the brand name Porotherm Smart Bricks, Wienerberger India has been producing a range of perforated/ Hollow Clay Blocks  that aid in cost effective wall construction. All blocks are available in 3 sizes (400*200*200) and comes in half block version as well.

Non-load bearing wall solution

Porotherm Horizontally Perforated Clay Bricks (Porotherm HP)

Porotherm HP clay hollow blocks are primarily used as infill masonry for non load bearing wall construction. The product is especially beneficial for high rise apartment buildings and has been extensively used across South India for the construction of Apartments, Independent Houses, Villas, Hospitals, Educational Institutions, Commercial Buildings and warehouses.

Porotherm Thermobricks

Porotherm Thermobrick has borrowed the principle of thermal insulation from nature, to become a unique walling material - one that keeps the interiors cool in summer and warm in winter! Specially formulated insulating material gives it a ‘U’ Value* of 0.6 W/m²K , which results in superior thermal insulation that greatly improves the indoor comfort of the building. U’ Value: 0.6 W/m2K makes Porotherm Thermobrick  the best available energy efficient brick in the market.

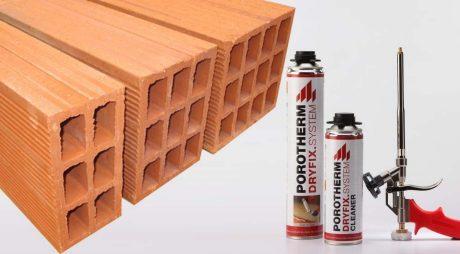

Porotherm HP Grinded with Dryfix System

Porotherm HP Grinded is the latest addition to the Porotherm Smart Bricks family – a result of Wienerberger’s constant efforts to innovate. The product offers greater stability and comes as a combined solution with Wienerberger’s revolutionary dry mortar system- Dryfix. The Dryfix.System is a specially formulated adhesive that creates perfect bonding between the blocks specially when used with Porotherm HP G, enhancing the strength of the walls.

Wall Soluition

Load-bearing wall solution

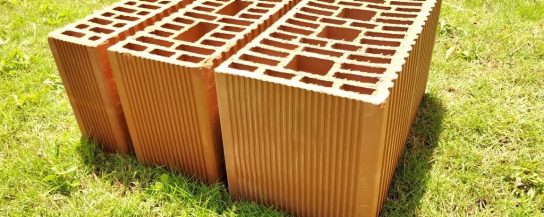

Porotherm Vertically Perforated Clay Hollow Bricks (Porotherm VP) for up to G+1 structures

A hallmark of design and ingenuity when it comes to cost effective, safe and green construction practices. This new age wall solution helps you save on your steel and concrete expenditures as it allows buildings to be constructed without RCC frame structures. Ideal for up to Ground + 1 floors. The product is robust and 100% natural with thermal insulation property promoting comfortable indoor climate all year round. High compressive strength bricks ≥ 7 N/mm2 enabling load bearing construction. Savings of structural cost as the concept eliminates the columns.

Advantages

Some of the intrinsic advantages common to all the profiles include:

  • Light weight (60% less weight than conventional walling material),
  • Strong & durable- high Compressive strength
  • Excellent Thermal and Sound Insulation
  • Low water absorption of ~ 15%, thus minimal risk of dampness, cracks or shrinkage of walls
  • Non-susceptible to carbonation thus providing greater durability
  • Technical support provided by Wienerberger at construction sites

Light weight & faster construction

Porotherm Smart Bricks are 60% lighter than conventional walling material thus allowing substantial savings on structural cost due to reduction in dead load. This also allows for faster construction and ease of handling.

Comfortable and healthy living

Excellent thermal insulation that's 45% better compared to conventional walling material. This leads to direct savings on energy consumption on air consumption and heating devices.

Natural & Green

The clay used in our production is sourced from de-silting of dead water tanks and only natural additives like coal ash, rice husk and saw dust are used. It also has been credited by Indian Green Building Council for ratings.

Strength & Use

High compressive strength due the web design means improved productivity in masonry. It's also easy to chase and chisel for electrical and plumbing conduits making it simple to install all types of fixtures (geysers, air conditioners, cabinets, closets etc).

Unlimited life and maximum fire protection

Has an exceptionally long life, it doesn't burn as it is already fired at 1000 degrees and has a fire rating of F240 - 240 minutes.

Technical Data

Porotherm HP Grinded Bricks Product Parameters

Name

Porotherm HP 200

Porotherm HP 150

Porotherm HP 100

Porotherm HP 200 H

Porotherm HP 150H

Porotherm HP 100H

Length

MM

400

400

400

200

200

200

Width

MM

200

150

100

200

150

100

Height

MM

200

200

200

200

200

200

Weight

Kg.

11.1

8.8

6.3

5.6

4.4

3.2

Density

Kg/m3

694

733

768

694

733

768

Compressive Strength

N/mm2

≥3.5

≥3.5

≥3.5

≥3.5

≥3.5

≥3.5

Water Absorption

 %

~15

~15

~15

~15

~15

~15

Efflorescence


  Slight

  Slight

  Slight

  Slight

  Slight

  Slight

U-Value

W/m2K

1.0

1.2

1.7

1.0

1.2

1.7

Sound Insulation

Rw (db)

44.08

41.90

38.75

44.08

41.90

38.75

Fire Insulation

min

240

120

90

240

120

90

Porotherm VP Product Parameters

Porotherm VP 200

Porotherm VP 150

Length

MM

400

400

Width

MM

200

150

Height

MM

200

200

Weight

Kg.

12.2

10.1

Density

Kg/m3

750-850

750-850

Compressive Strength

N/mm2

≥7

≥7

Water Absorption

  %

~20

~20

Efflorescence


Slight

Slight

U-Value

W/m2K

1.3

1.7

Sound Insulation

Rw (db)

45.69

43.48

Fire Resistance

min

240

120

Porotherm Thermobrick - Product Parameters

Porotherm Thermobrick

Length

MM

400

Width

MM

200

Height

MM

200

Weight

Kg.

11.7

Density

Kg/m3

731

Compressive Strength

N/mm2

≥3.5

Water Absorption

  %

~15

Efflorescence


Slight

U-Value

W/m2K

0.6

Sound Insulation

Rw (db)

44.65

Fire Resistance

min

240

Porotherm Clay Hollow Blocks - Applications
